Vendor: Titanium Surron
Talaria MX3/MX4/MX5 Titanium Bolt Kit – Full Body Grade 5
Throttle Bros score
Not rated
How we score · both scores use the same four questions
This part = 239 entries towards the next giveaway
Fits 3 bikes, see the list
- Talaria Sting MX3
- Talaria Sting R MX4
- Talaria Sting MX5
Description

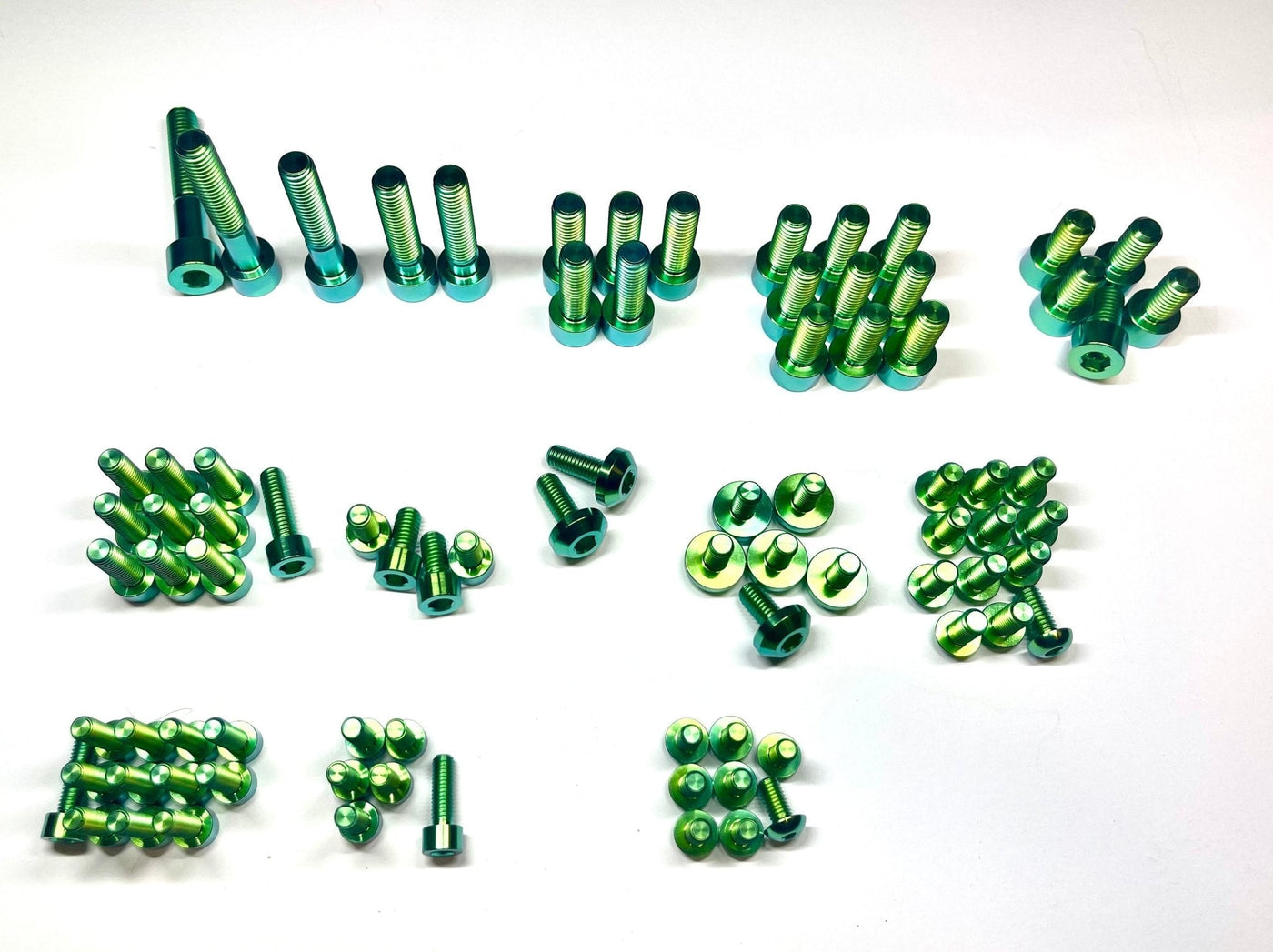

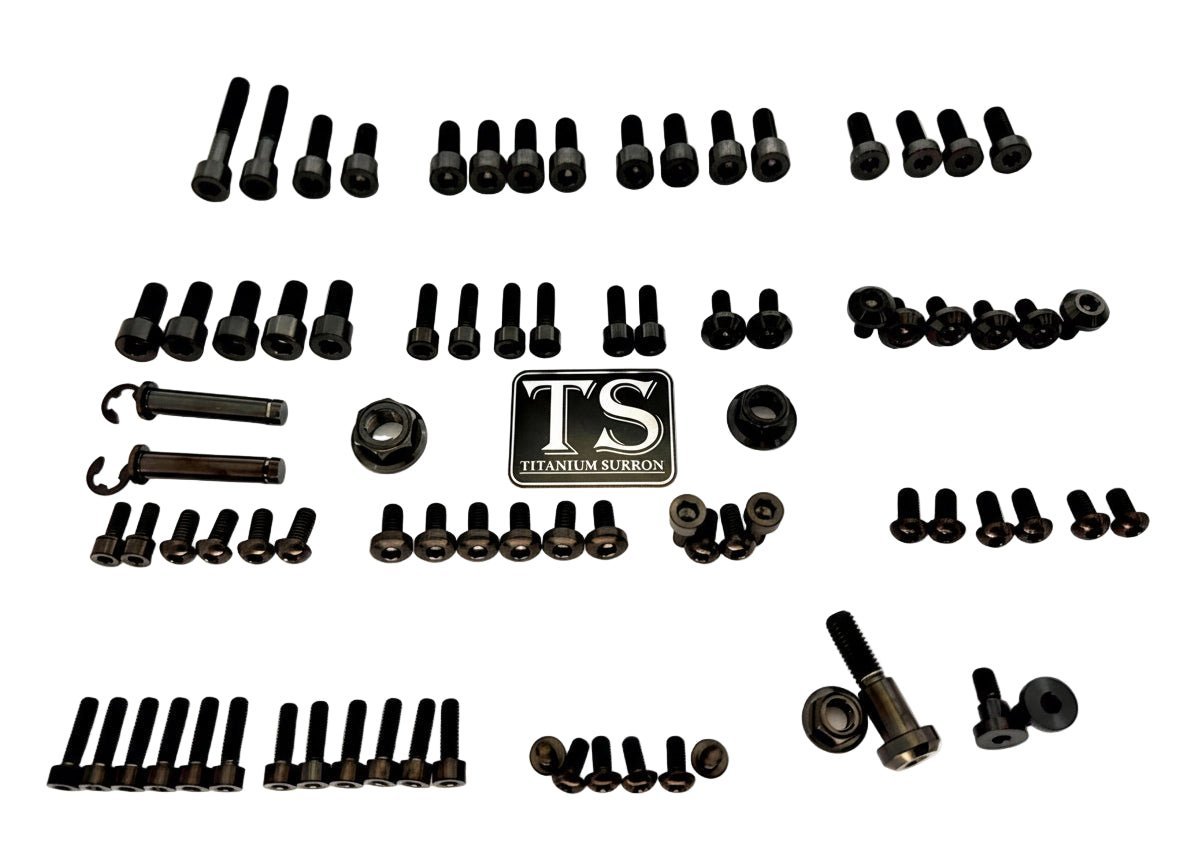

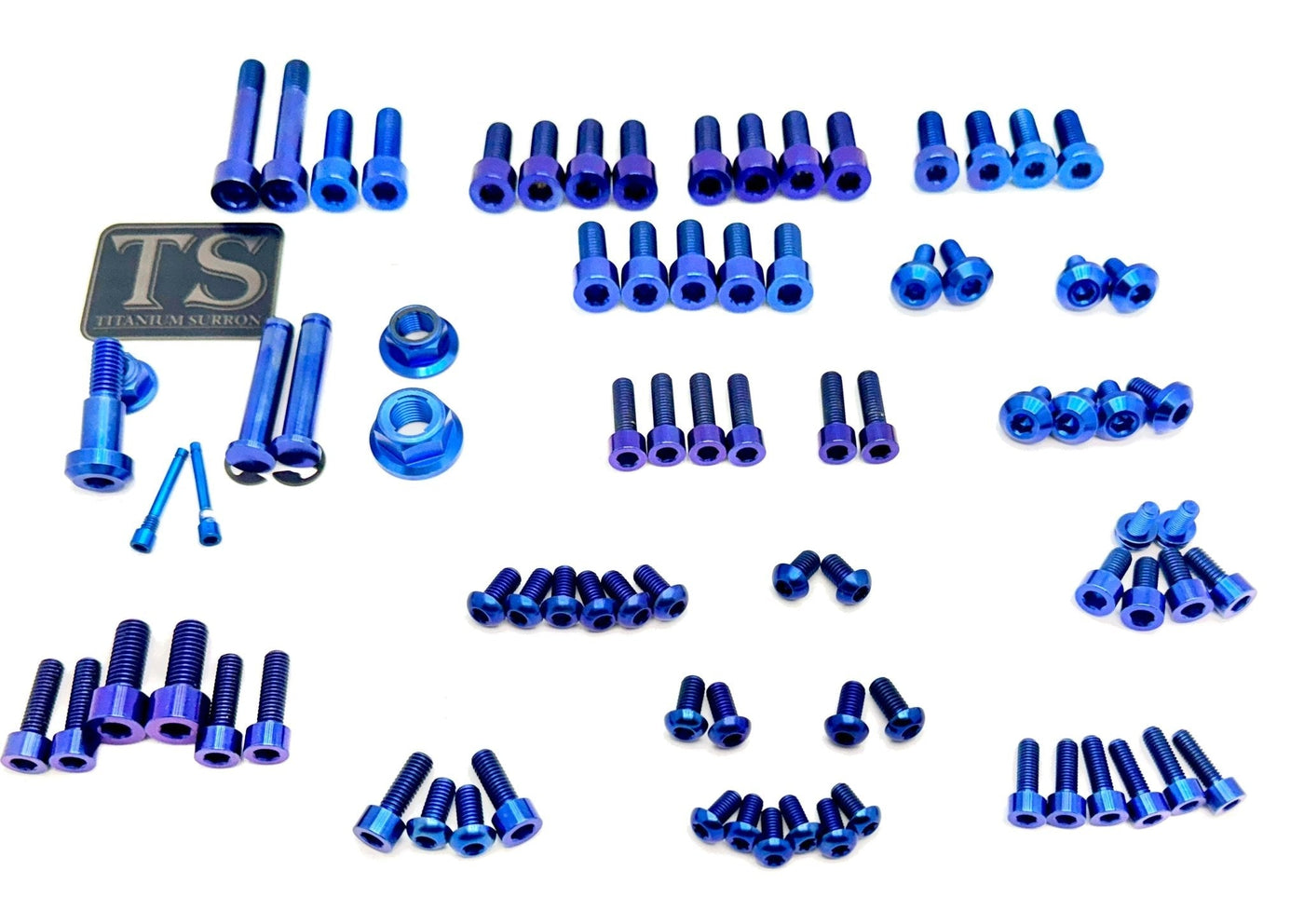

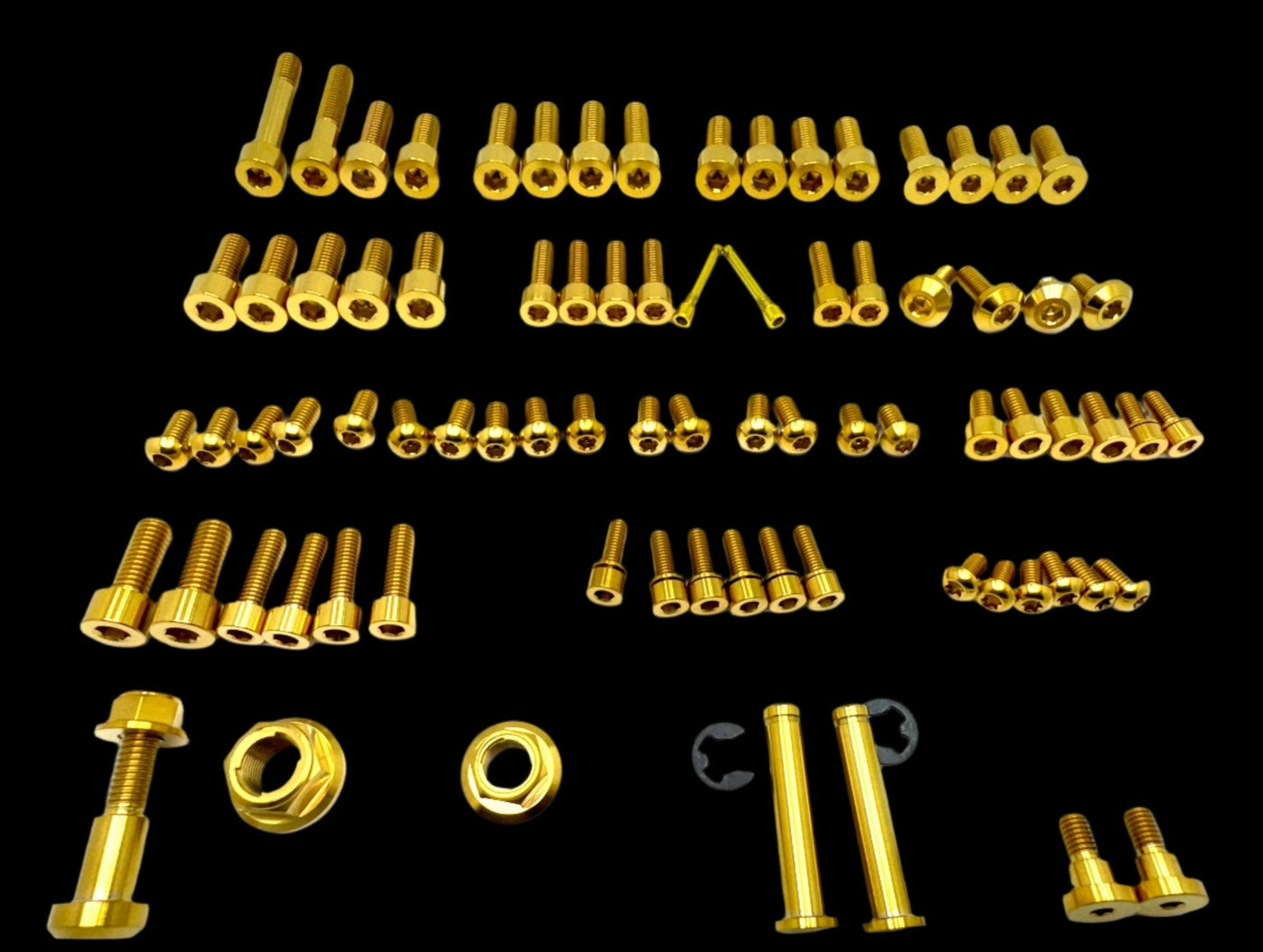

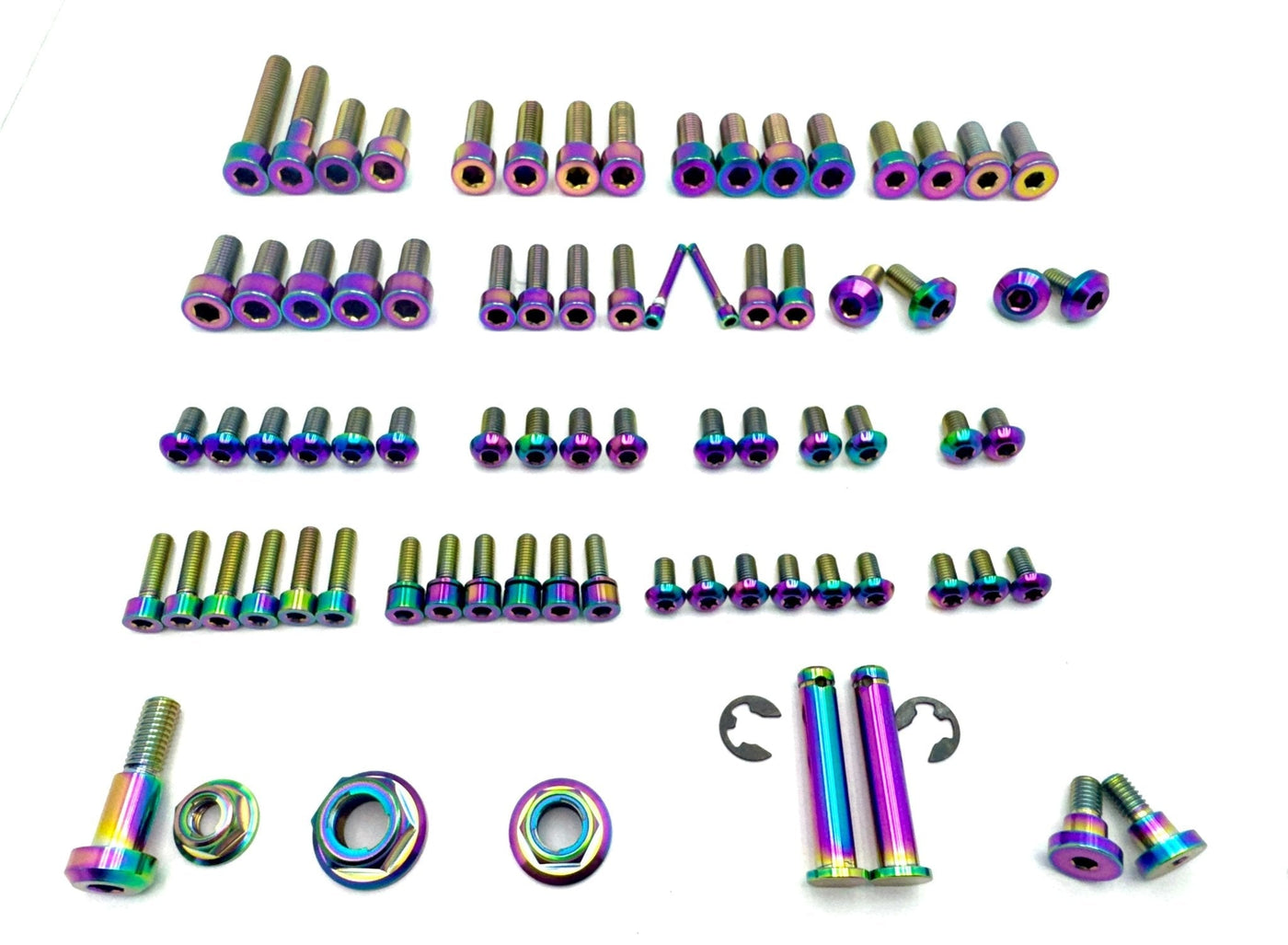

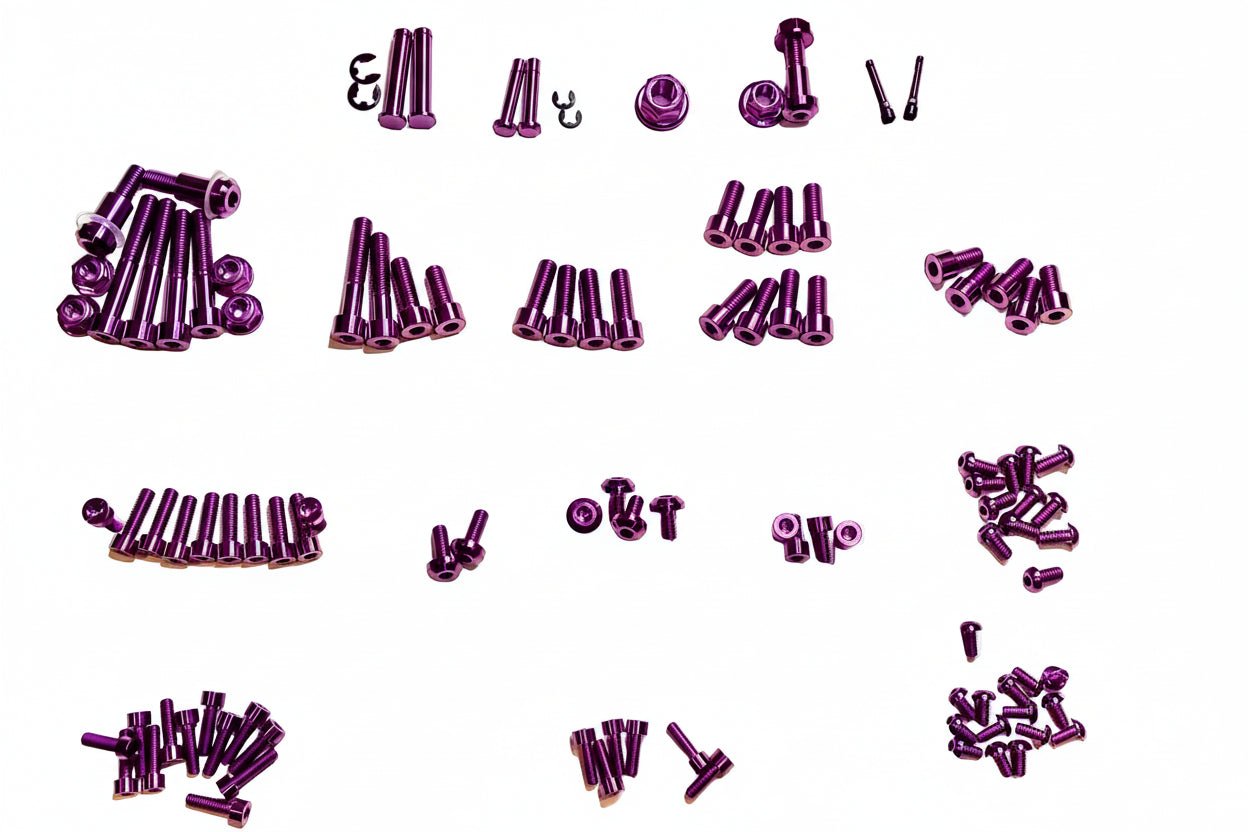

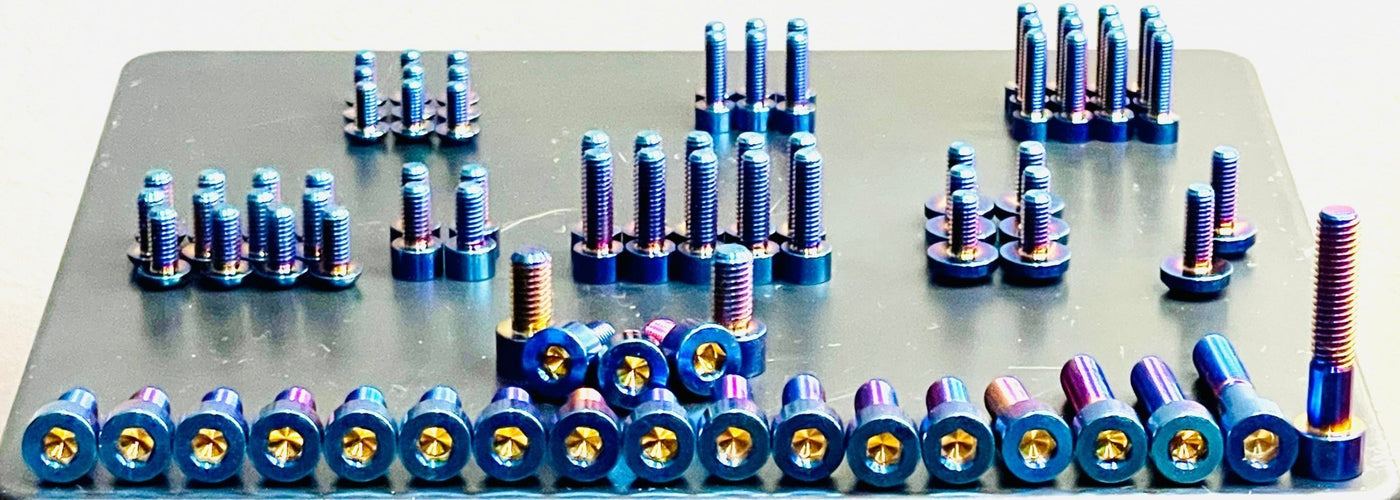

Complete anodized titanium full body hardware kit for the Talaria MX5/ MX4/ MX3. This kit covers all bolts/ screws that are easily visibly seen. Precision-machined from certified Titanium Grade 5 (6AL-4V) alloy.
Key Features
- Anodized / PVD Coated: Premium finish available in multiple colors
- Increased Corrosion Resistance: Built to withstand harsh riding conditions
- Certified Titanium Grade 5 (6AL-4V): Aerospace-grade alloy
- Rolled Threads: Greater fatigue strength compared to cut threads
- Excellent Strength-to-Weight Ratio: Pound for pound, titanium Grade 5 is stronger than steel — same strength at 45% of the weight
- 45% Lighter Than OEM: Significant weight savings without sacrificing strength
- Exclusively sold at Titanium Surron and authorized retailers only
Kit Includes
Almost every visible piece of hardware:
- M10 Upper linkage knuckle to swingarm bolt
- M10 Lower rear gearbox mount to frame bolt
- M8 Lower triangle mount to frame bolt
- M8 Lower left motor mount
- M8 Upper left motor mount
- M8 Lower linkage knuckle to triangle bolt
- M8 Lower rear shock bolt
- M8 Upper rear shock mount bolt
- M8 Upper and lower right motor mount bolt
- M8 Left and right foot peg frame bracket bolts
- M8 Subframe bolts
- M8 Sprocket bolts (MX5 only: shouldered bolt not available, kits come with non-shouldered bolts)
- M6 Lower rear skid plate bolts
- M6 Caliper bolts
- M6 Upper left and right frame bolts (upper battery plate)
- M6 Lower left and right battery tray bolts
- M6 Headlight mount bolts
- M6 Rear rotor bolts
- M6 Mud guard mounting bolts
- M6 Chain guard mounting bolts
- M6 Plastic gearbox cover mounting bolts
- M6 Upper front skid plate mounting bolts
- M6 Left and right controller mounting bolts
- M6 Seat front plastic cover bolts
- M5 Lower left and right horn cover bolts
- M5 Front rotor bolts
- M5 Key switch cover bolts
- M5 Upper horn cover bolt
- Battery lid bolts (MX3 requires M8x1.0 tap)
- Peg pins
- Axle nut (M12)
- Kickstand bolt
Photos are for color reference. Not actual make-up.
Talaria MX complete kits
Running an aftermarket fork on your Talaria Sting? This full-body kit is also sold bundled with a titanium fork bolt kit: the Talaria MX3/MX4 Complete Kit with EXT Ferro and the Talaria MX3/MX4 Complete Kit with FastAce Gravitee / 2.0. See other bikes in titanium full-body bolt kits for e-moto.
