Tech Suspension E39 Fork by Formula

Formula Tech Suspension E39 Fork

Engineered to enhance the performance of lightweight E-Motos.

MOTORCYCLE DESIGN

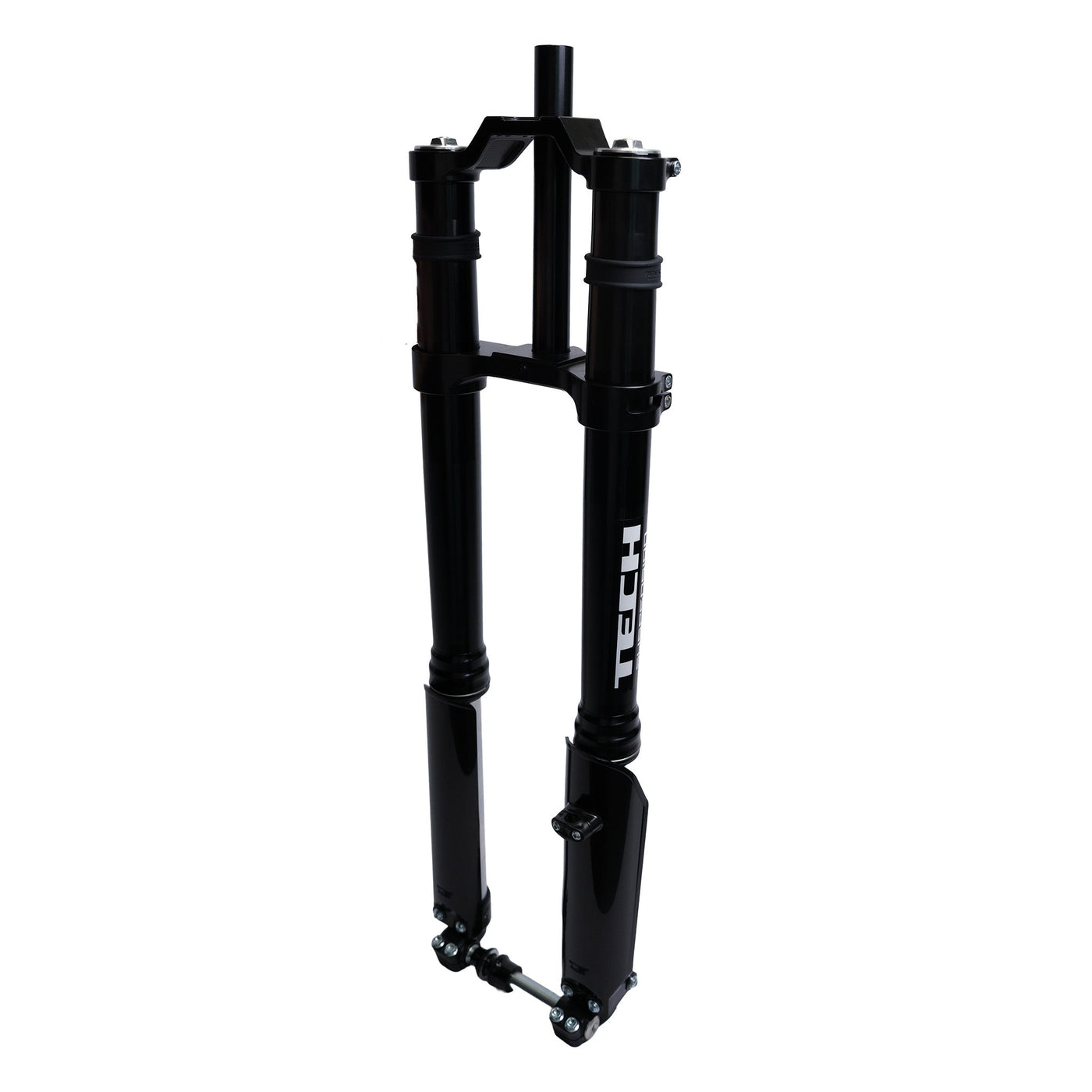

• 39mm stanchions and an upside-down, dual-crown design provide support and precise steering without flexing under heavy impacts.
• Dual coil springs and hydraulic dampers designed and tuned for the weight and speed of lightweight E-Motos.

PERFORMANCE & ADJUSTABILITY

• 230mm travel with easy-to-use high/low-speed compression and rebound adjustments.
• Factory-tuned for average weight riders of 60-80kgs and all-round riding using a medium spring rate.
• Five different spring combinations are available to cater for all rider weights and types of riding.

COMPATIBILITY

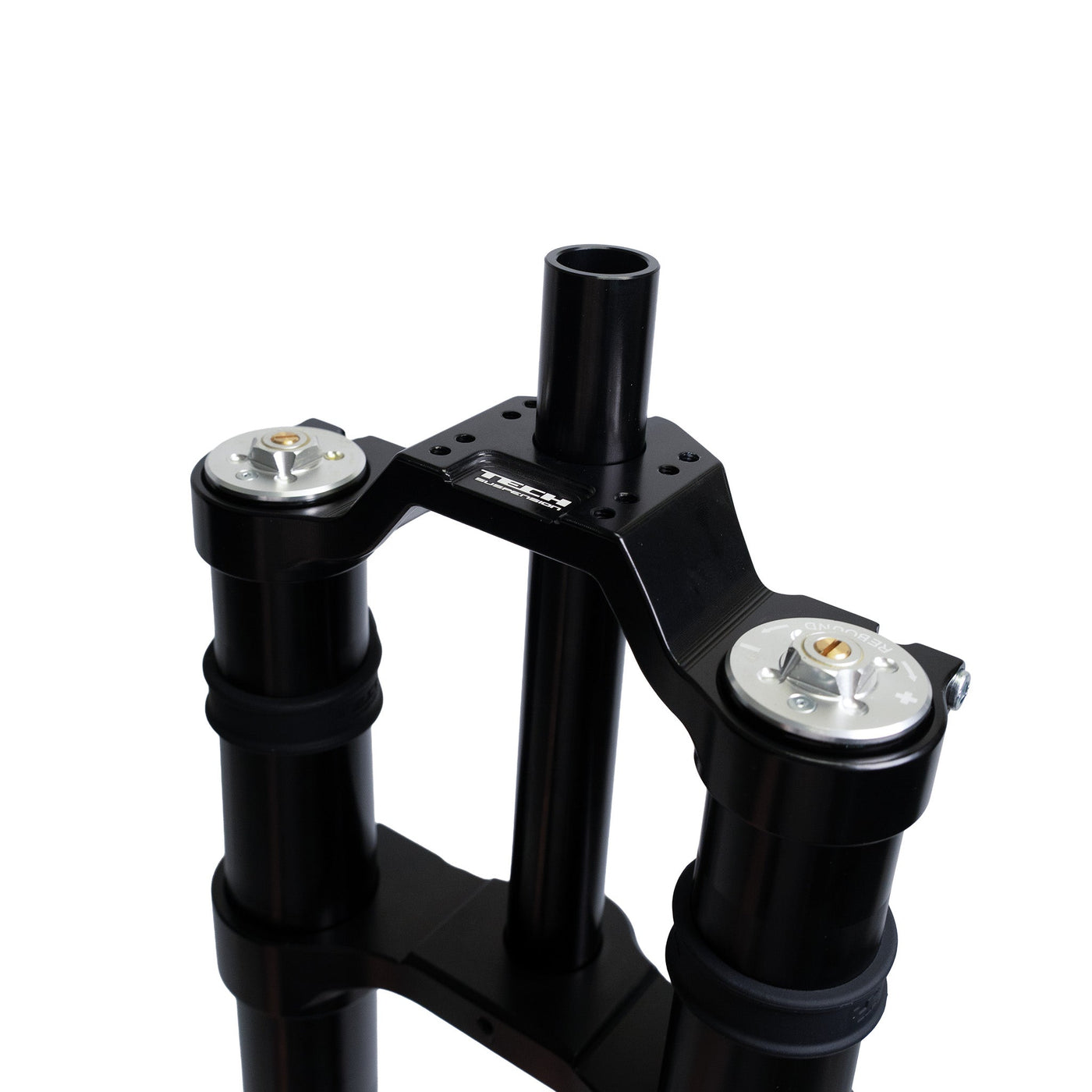

• Includes triple clamps, axle, and wheel spacer for direct installation on all lightweight E-Moto brands*.
• Standard drop crown supports 21″ wheels.

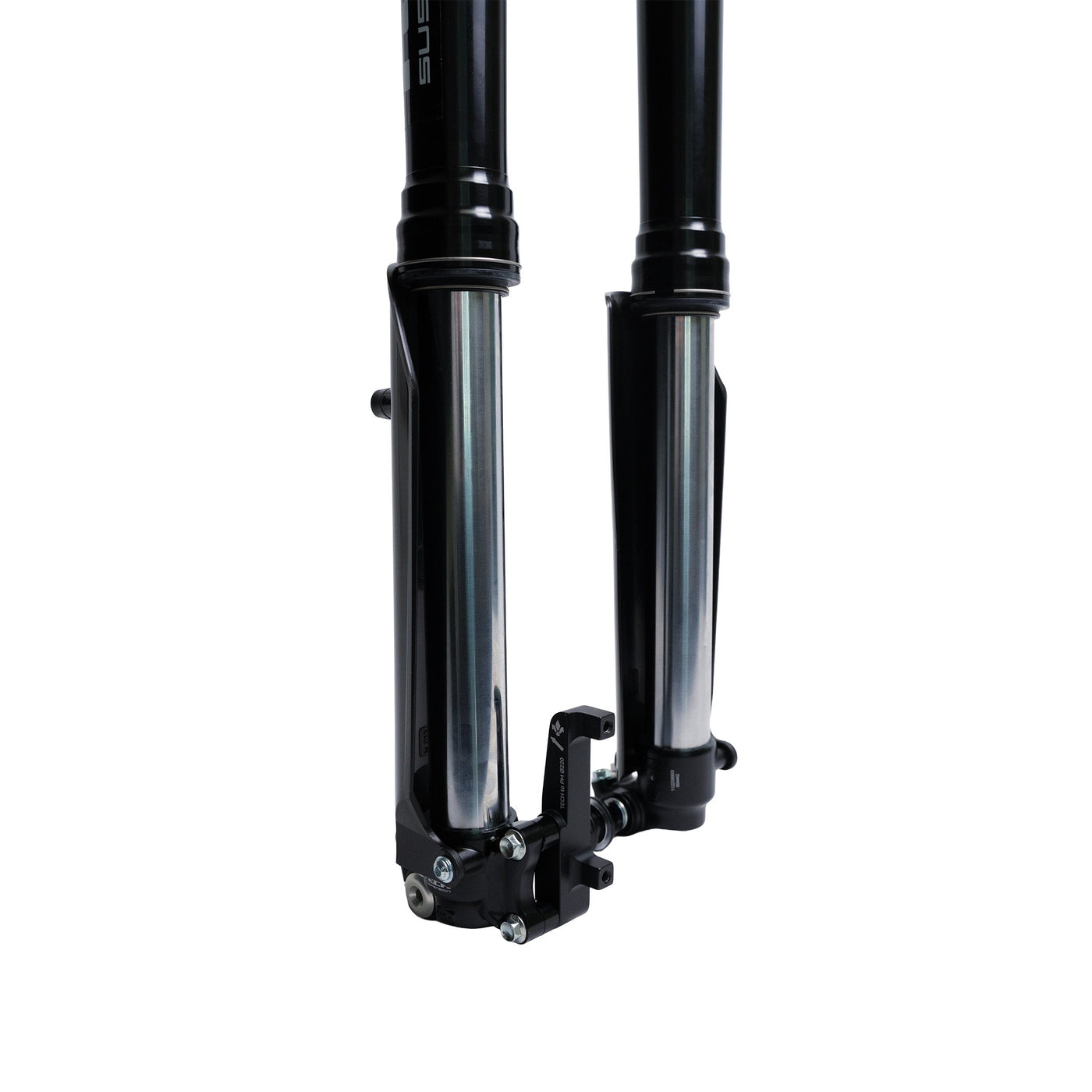

• PM caliper mount supports 220mm brake discs.

DURABILITY

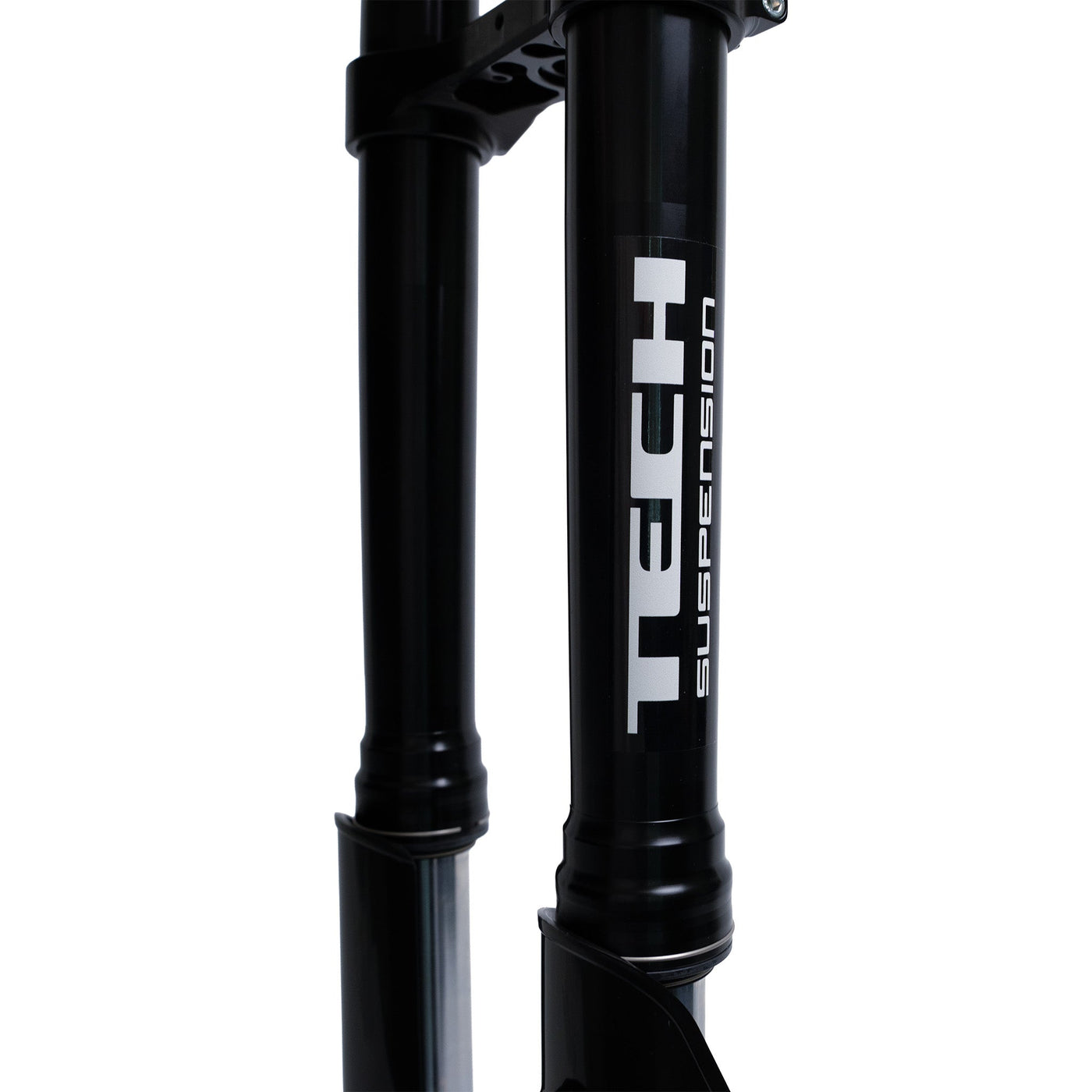

• Anodized aluminum outer tubes and hard-chrome-treated steel stanchions resist wear in demanding conditions.
• Low-friction bushings, heavy-duty seals, and premium oil ensure consistent performance.
• Plastic fork guards included for stanchion protection.

Tech Specs

• Stanchion Tubes: 39mm diameter Hard Plated Chromoly Steel
• External adjustment: Rebound + compression
• Overall Length: 770 mm
• Axle to Crown: +/- 635mm
• Stroke: 230mm
• Weight: 14.8lbs
• Stanchion tubes: titanium black coating

Compatible with Surron Light Bee X/S, Talaria Sting MX3/4, and E-Ride Pro S/SS 2.0 models.

Check fitment before you send it.
