High Voltage Fuse Kit & Replacement Fuses
Throttle Bros score
Not rated
How we score · both scores use the same four questions
This part = 19 entries towards the next giveaway
Description
High Voltage Fuse Kit & Replacement Fuses
Protect your battery and electrical system with our high-voltage fuse solutions. Choose between a complete fuse kit or replacement fuse options for service and maintenance.
The complete kit includes everything required to install a new fuse assembly, while replacement fuse options are available for riders who already have a fuse holder installed.

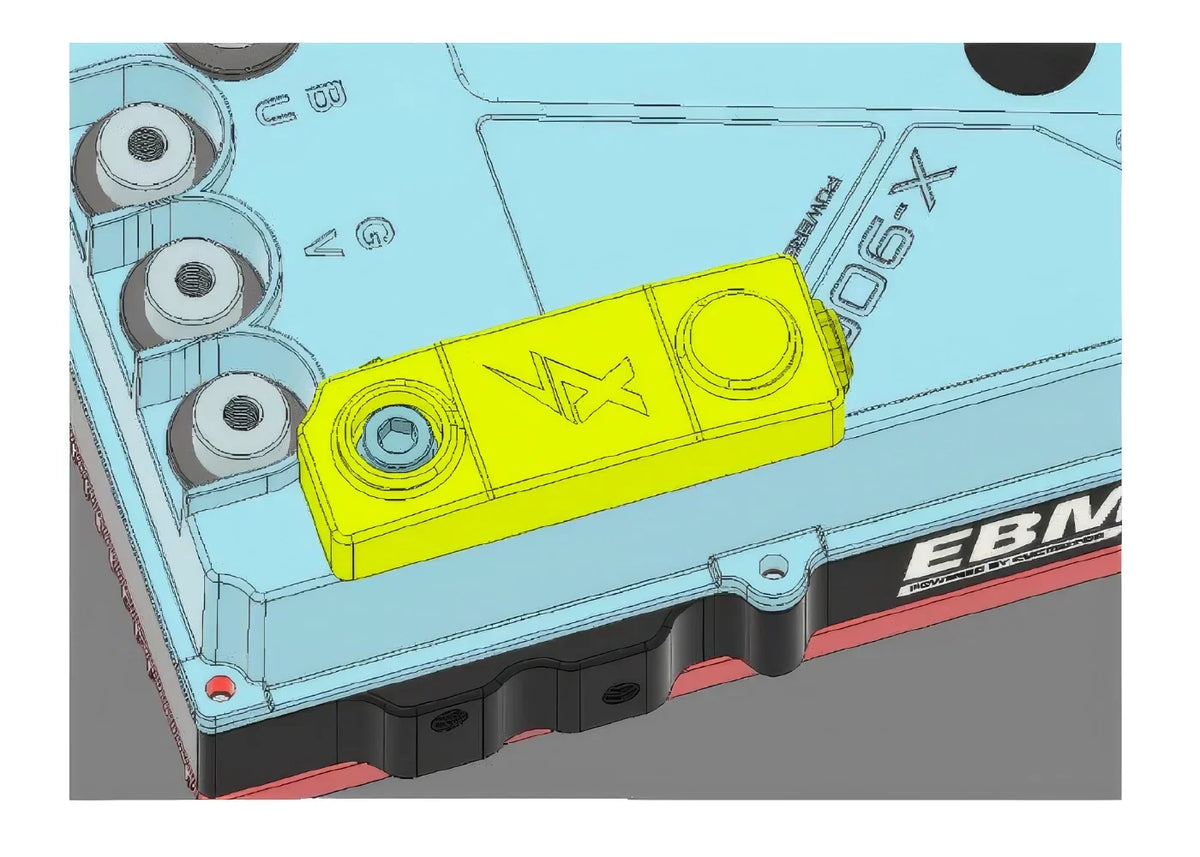

How to Install:
Available Configurations
- 250A Fuse Kit – Complete installation kit with fuse, fuse case, and mounting hardware.

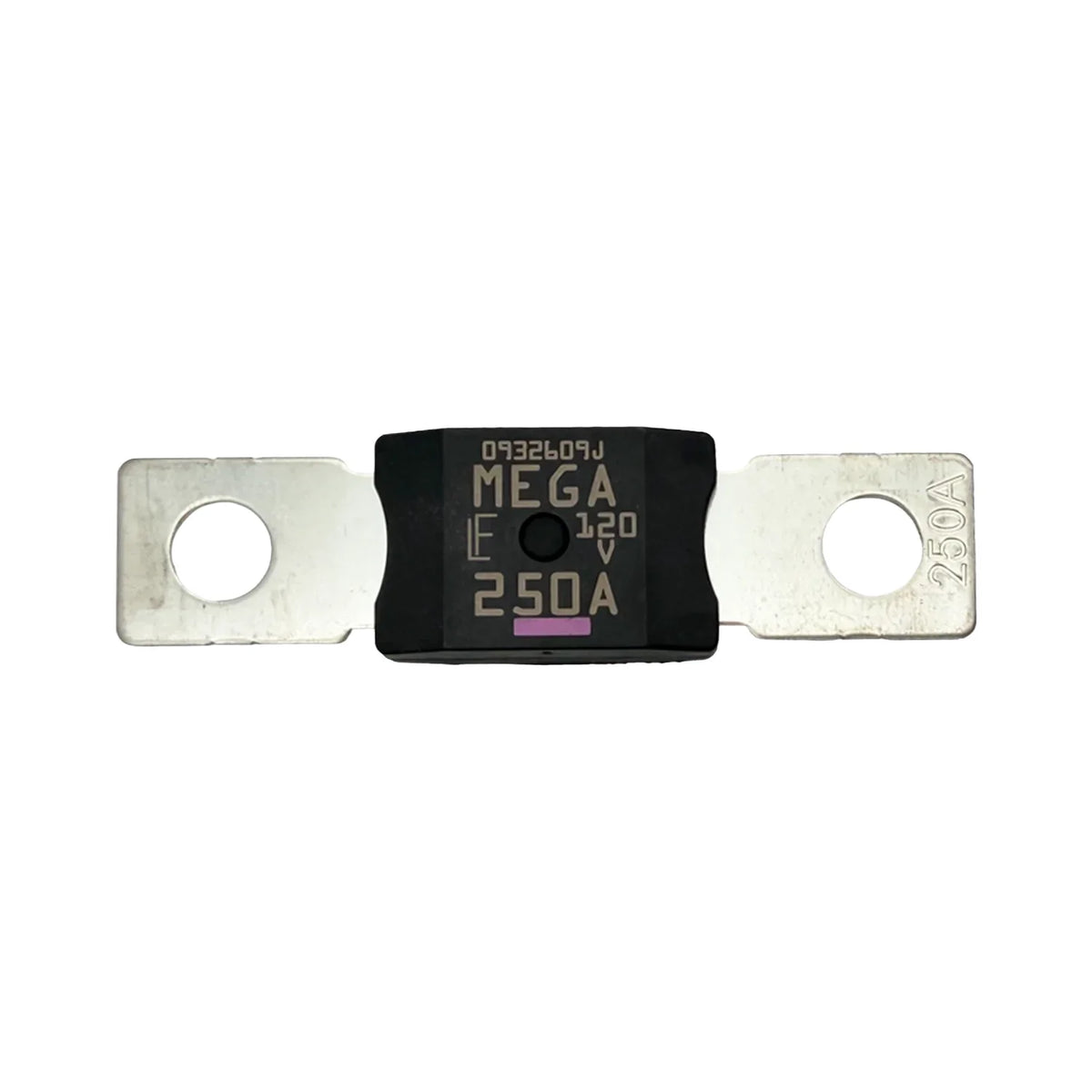

- 250A Replacement Fuse – Fuse only.

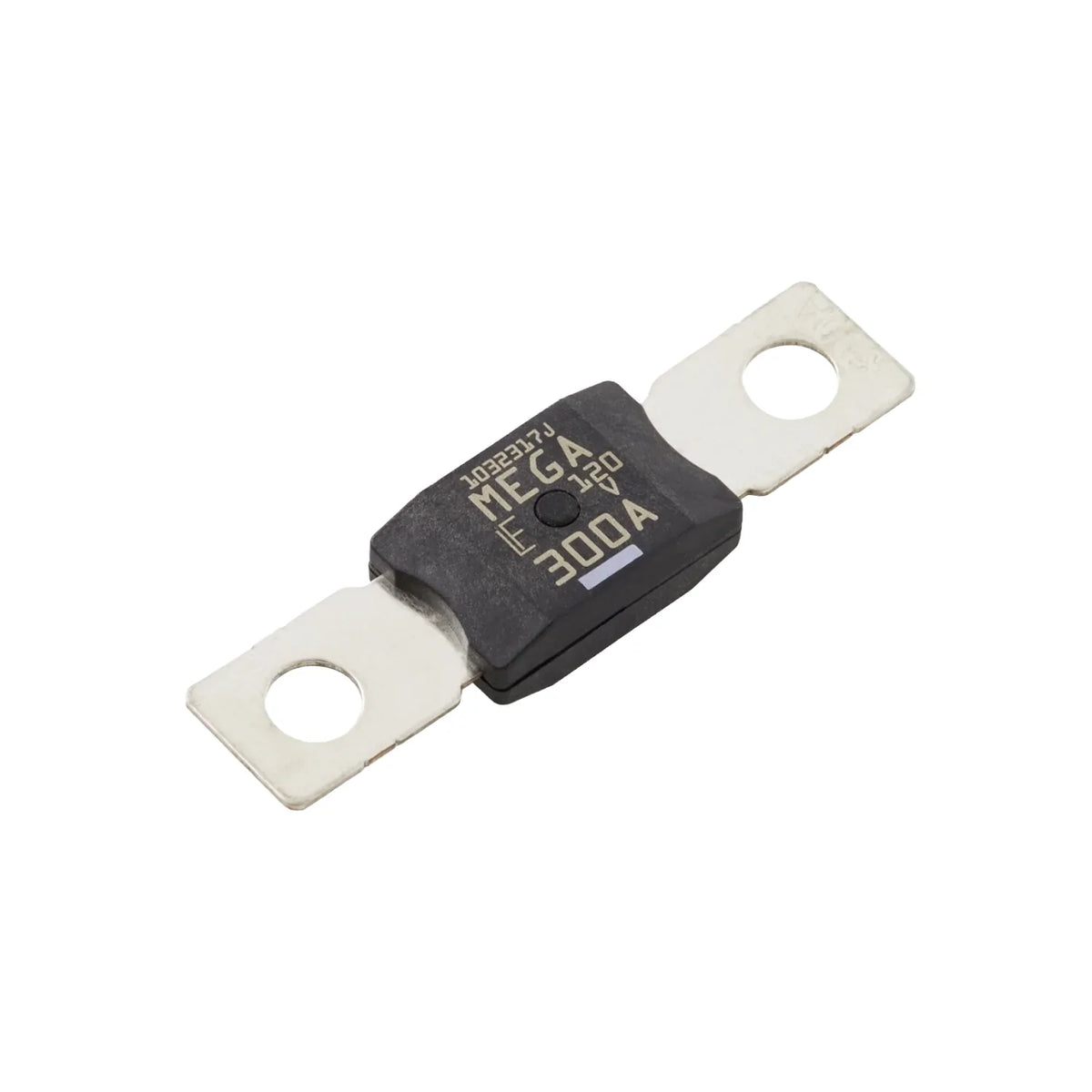

- 300A Replacement Fuse – Fuse only.

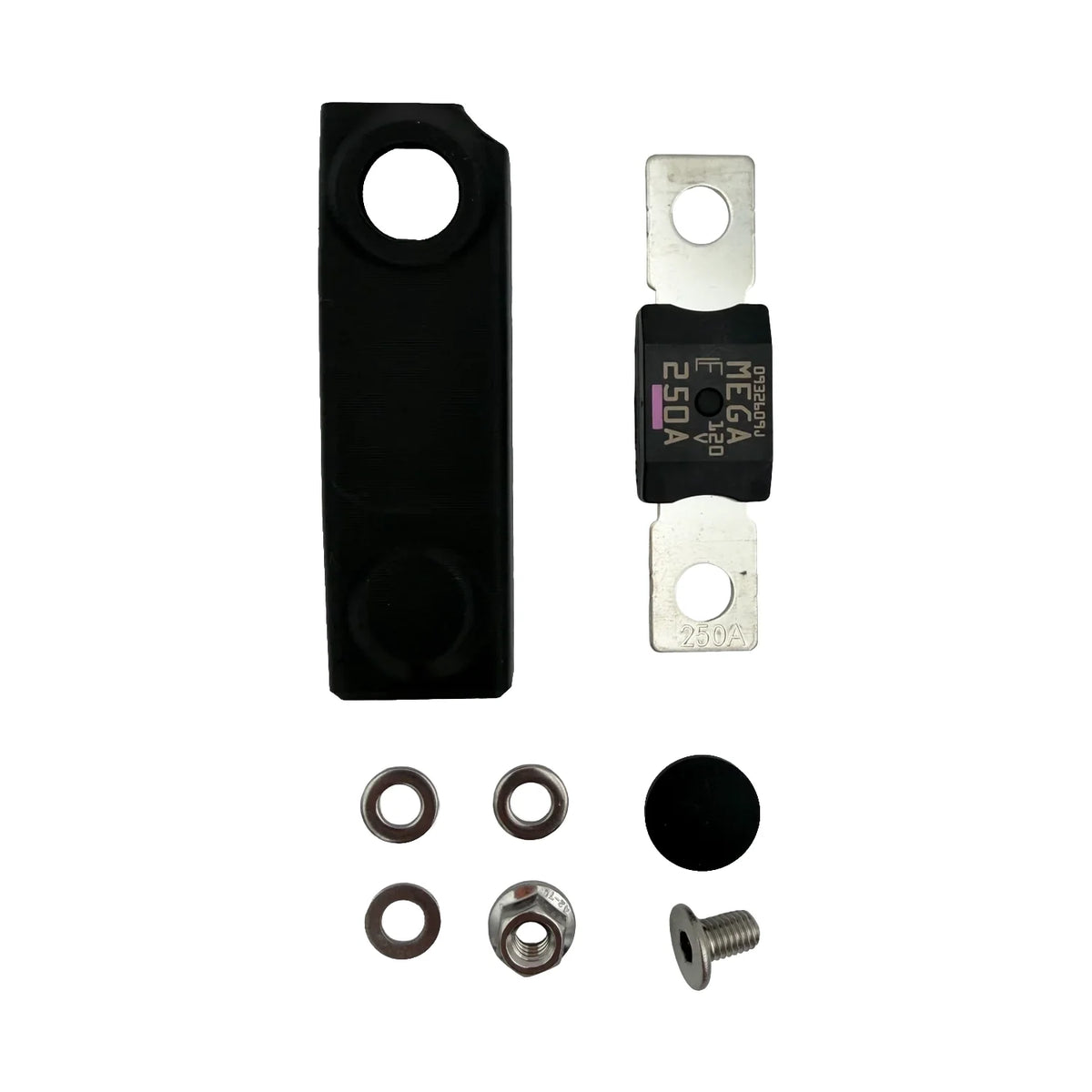

250A Fuse Kit Includes
- 1x 120VDC 250A Fuse
- 1x Plastic Fuse Case
- 1x M6 Serrated Flange Nut
- 1x M6 x 10mm Ultra Low Profile Socket Head Screw
- 1x M6 x 1.5mm Thick Washer
- 2x M6 x 1mm Thick Washers
Features
- High-current protection for battery systems
- 120VDC-rated fuse design
- Compact fuse holder assembly
- Direct replacement fuse options available
- Ideal for high-performance eMoto applications

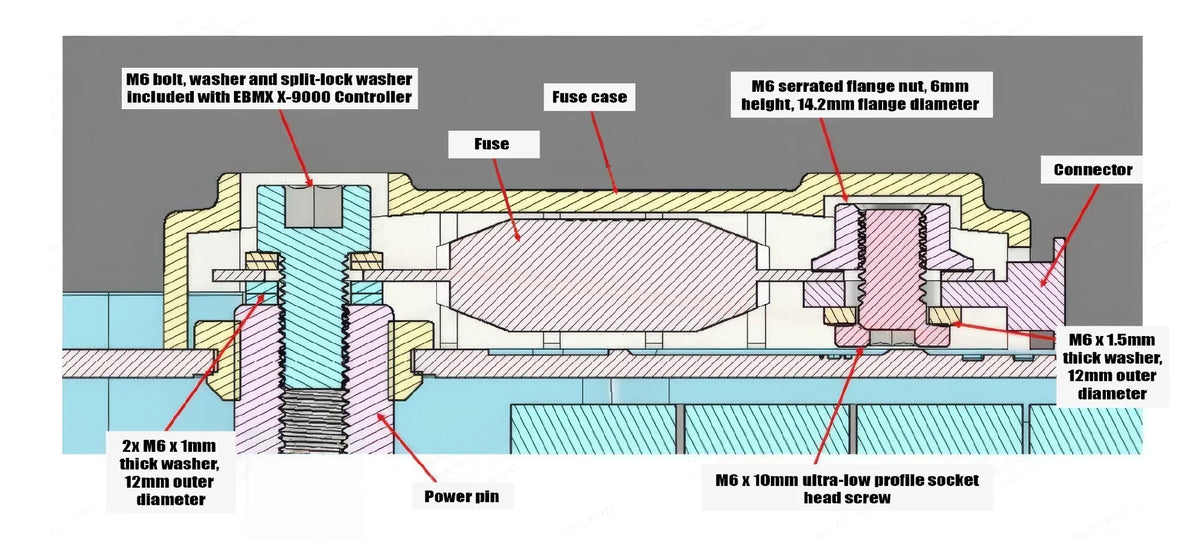

Installation
Note: Always verify the correct fuse rating for your application before installation.
Frequently Asked Questions
What's the difference between the kit and a replacement fuse?
The kit includes the fuse, case, and mounting hardware for a first-time install; replacement fuses are fuse-only for riders who already have a holder in place.
Which rating do I need, 250A or 300A?
Match the rating to your existing fuse holder and controller specs — most Surron and Talaria builds use 250A unless specified otherwise.
Do I need any tools to install the kit?
A basic hex key set is all you need; the included install video walks through the process step by step.
