Description

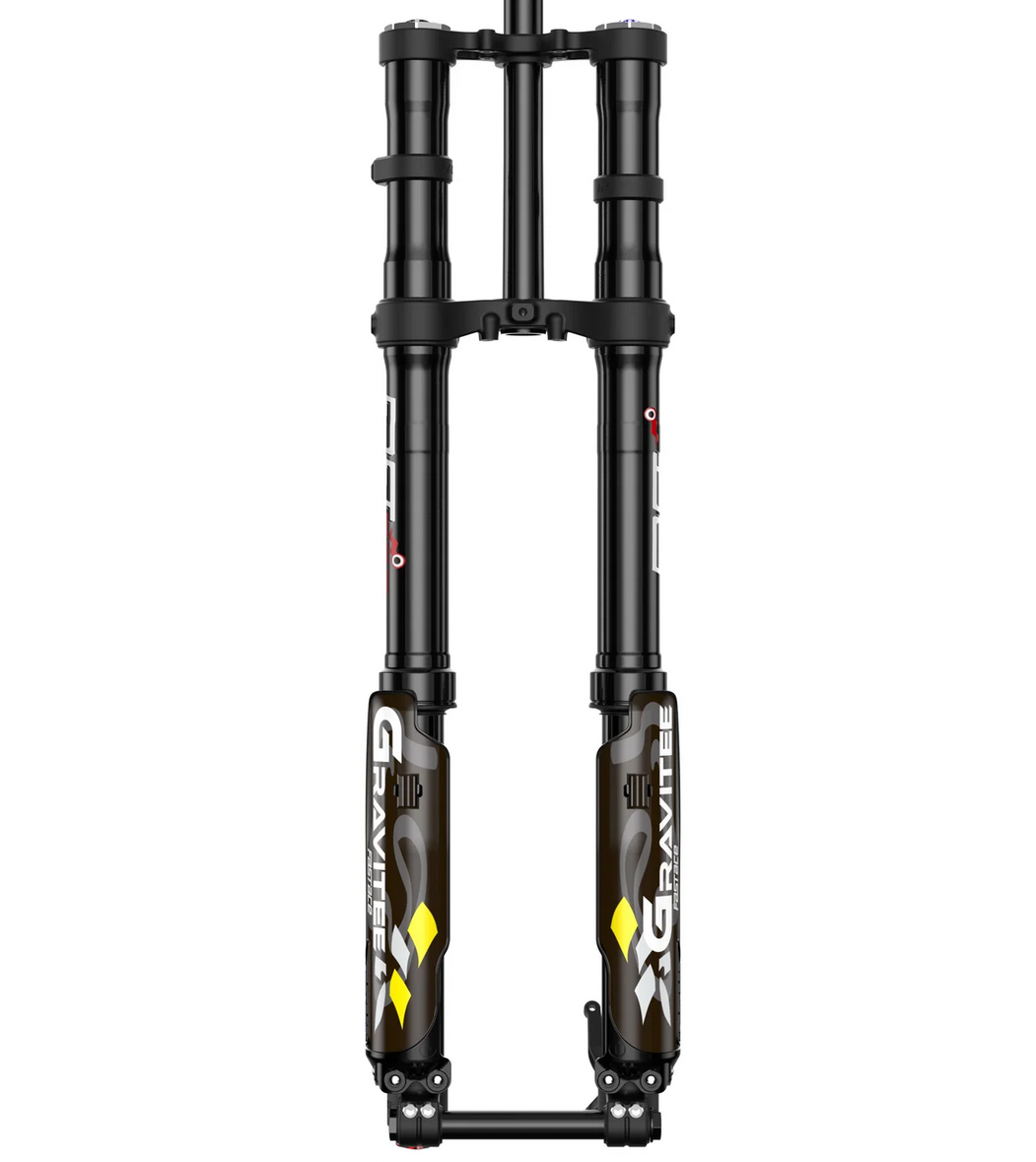

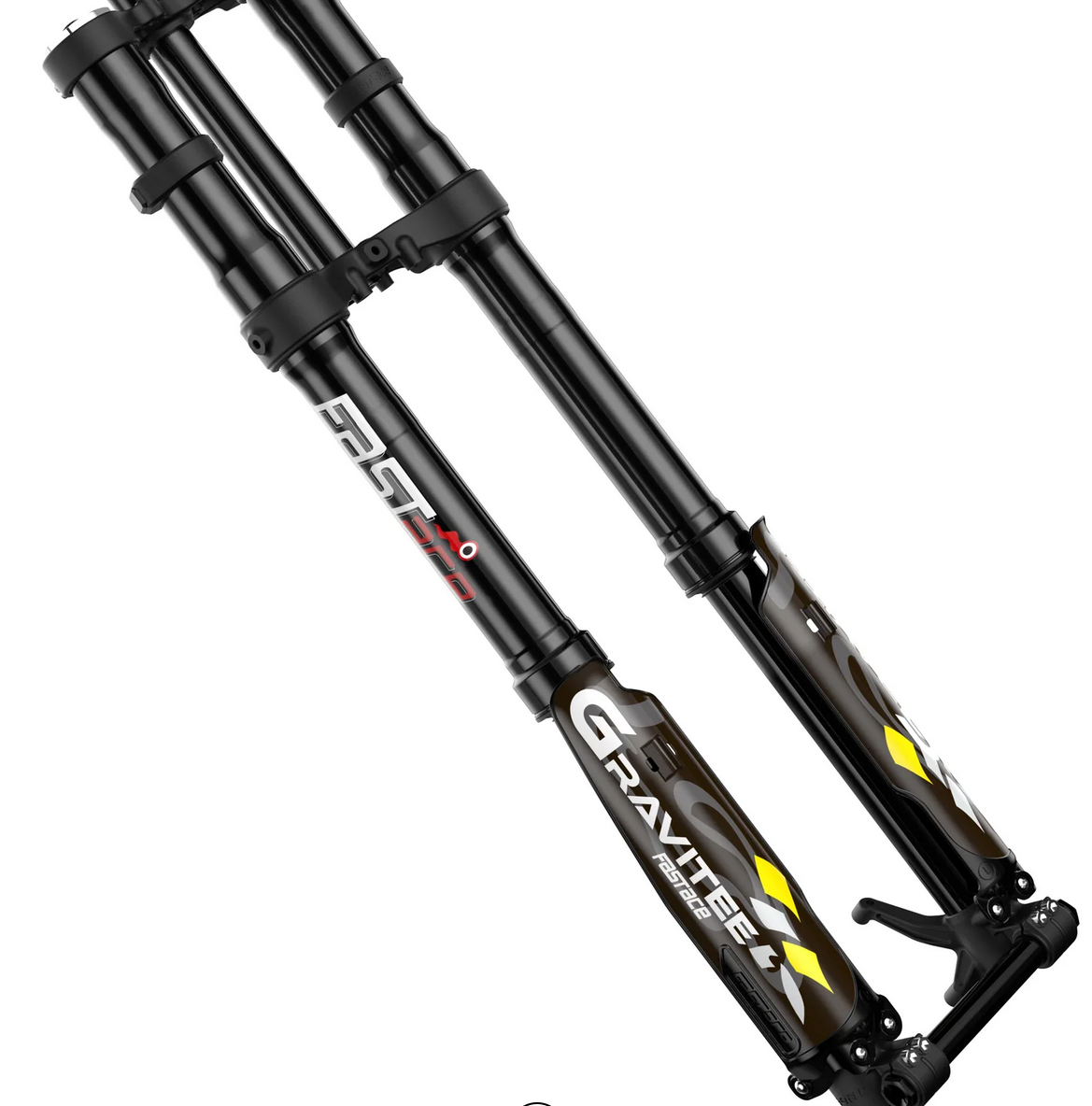

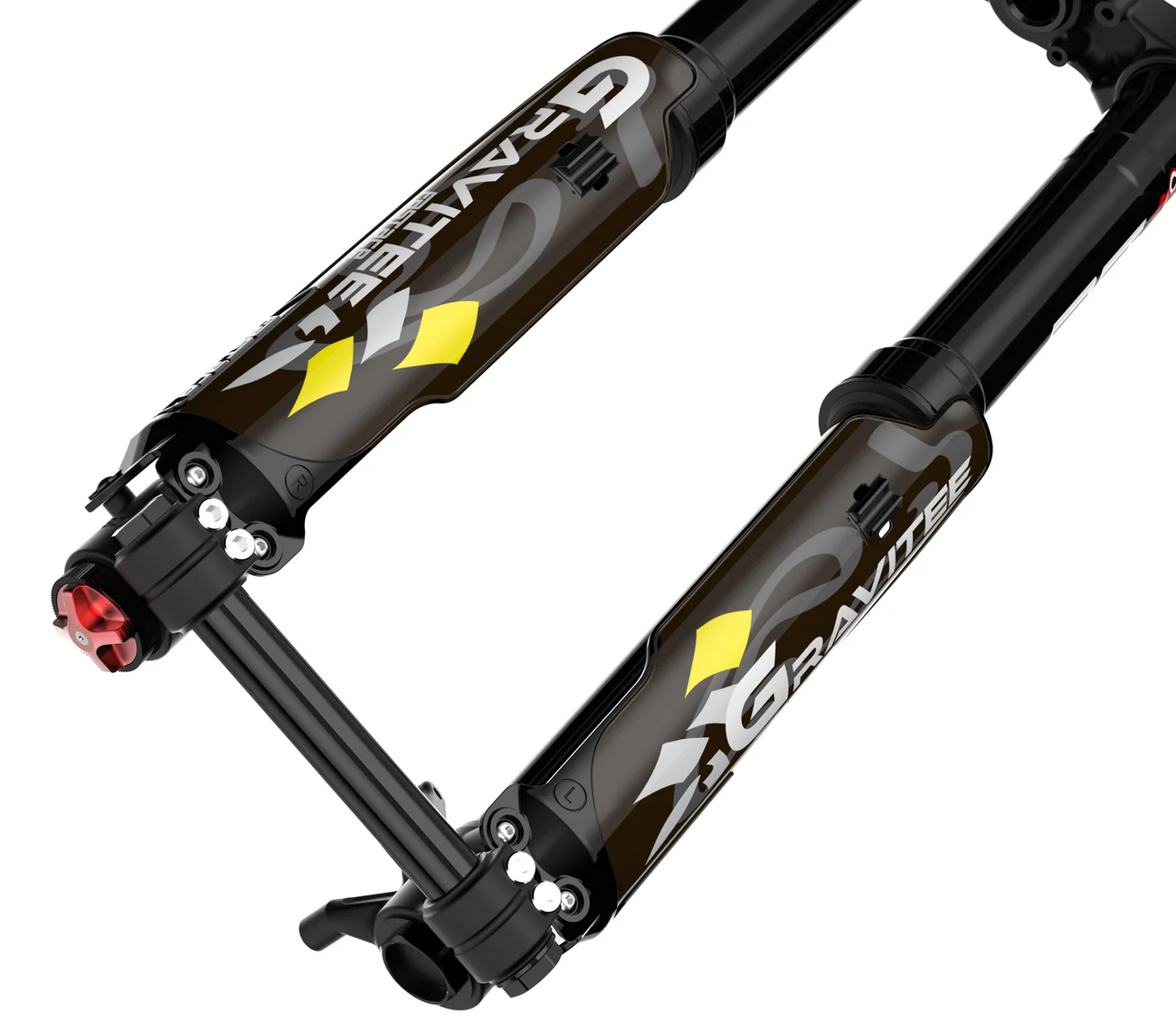

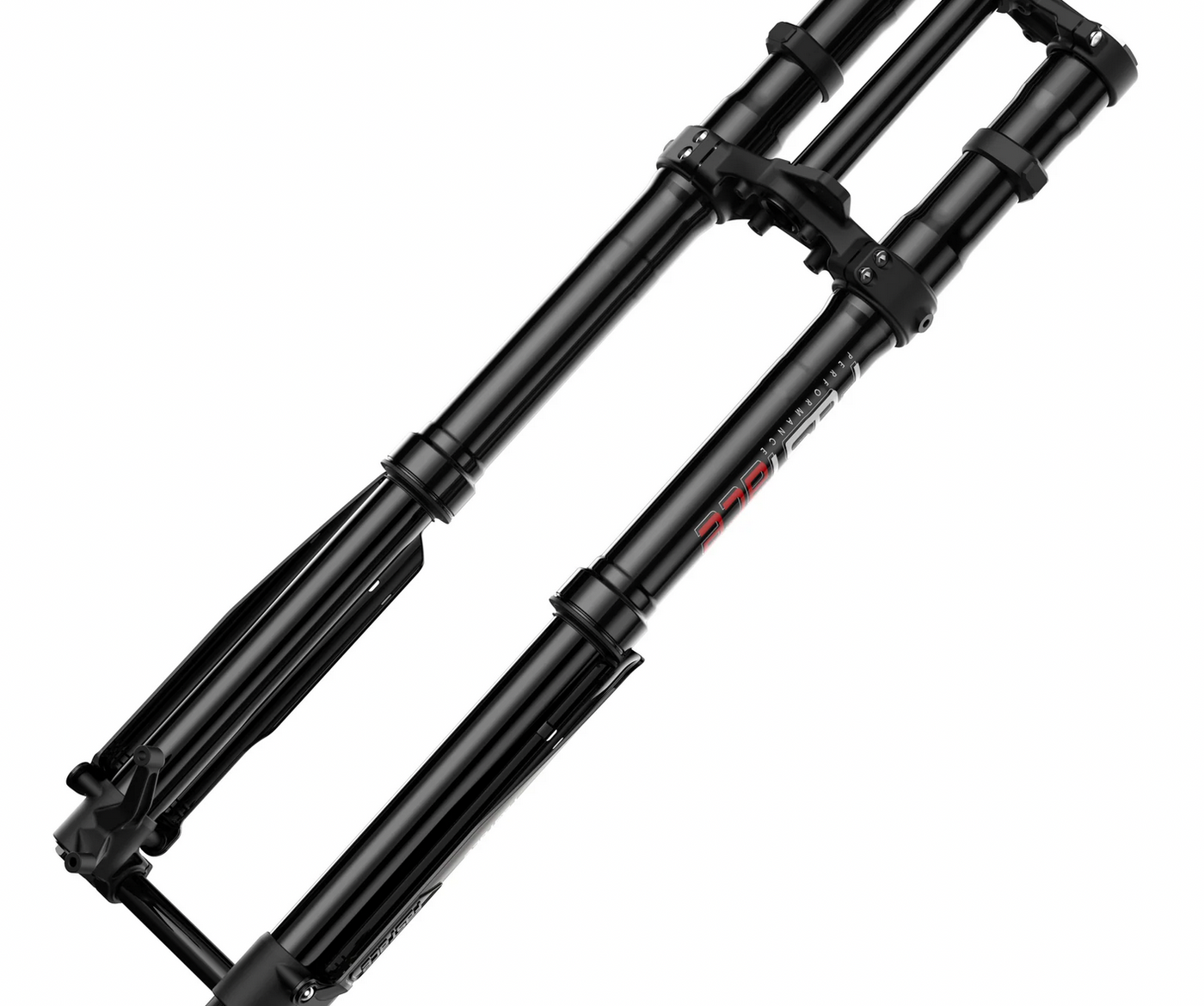

This is FastAce's newest offering for Surron Light Bee, Talaria Sting MX3/MX4/XXX, E Ride Pro SS, and all other MTB fork based eMoto bikes. Often called the "3.0", it's bigger and beefier than its predecessor, includes black lower/stanchion tubes, and now has 18 clicks of both high and low-speed compression damping adjustment.  It features HD springs up to 60lb and updated dampening valving which provides a huge upgrade over previous generations and the OEM forks.

Spring Rate Recommendation

Spring Rate Under 175  176-200 200+
50 lb Ideal Soft Too Soft
60 lb Stiff Race Ideal
38-60lb Progressive Stiff Ramp Up Plush Excess Sag

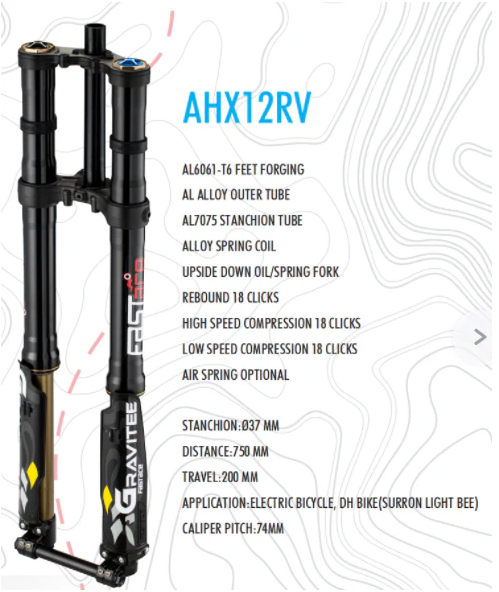

FEATURES:

  • Legs Material: 2000 Series Aluminium
  • Leg Diameter: 37mm
  • Axle: 20*10*M14*P1.5*170L
  • Steerer: 1-1/8" Straight
  • Spring:  coil spring
  • Adjustments: Rebound, HS and LS Compression
  • 18 steps High Speed and 18 steps Low Speed Compression Damping
  • 18 steps Rebound Damping
  • Crown: Forged
  • Brake Post Mount: 203mm (compatible with up to 223mm rotors)
  • Max Tire Width: 67mm
  • Ride Height: 22.9in
  • Travel: 200mm
  • For heavier riders and big air dirt jumpers



FastAce AHX12RV Gravitee Front Fork $749.00
