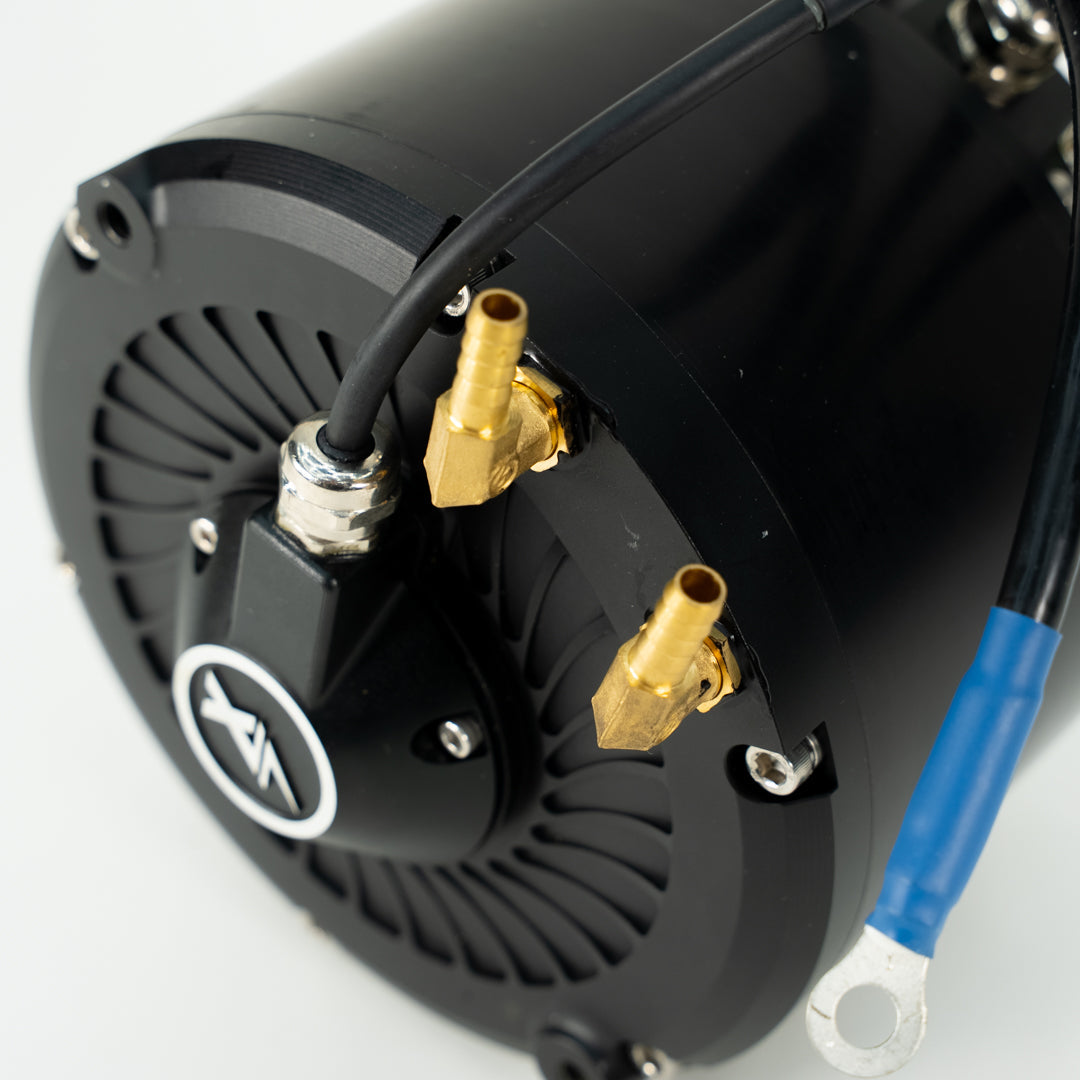

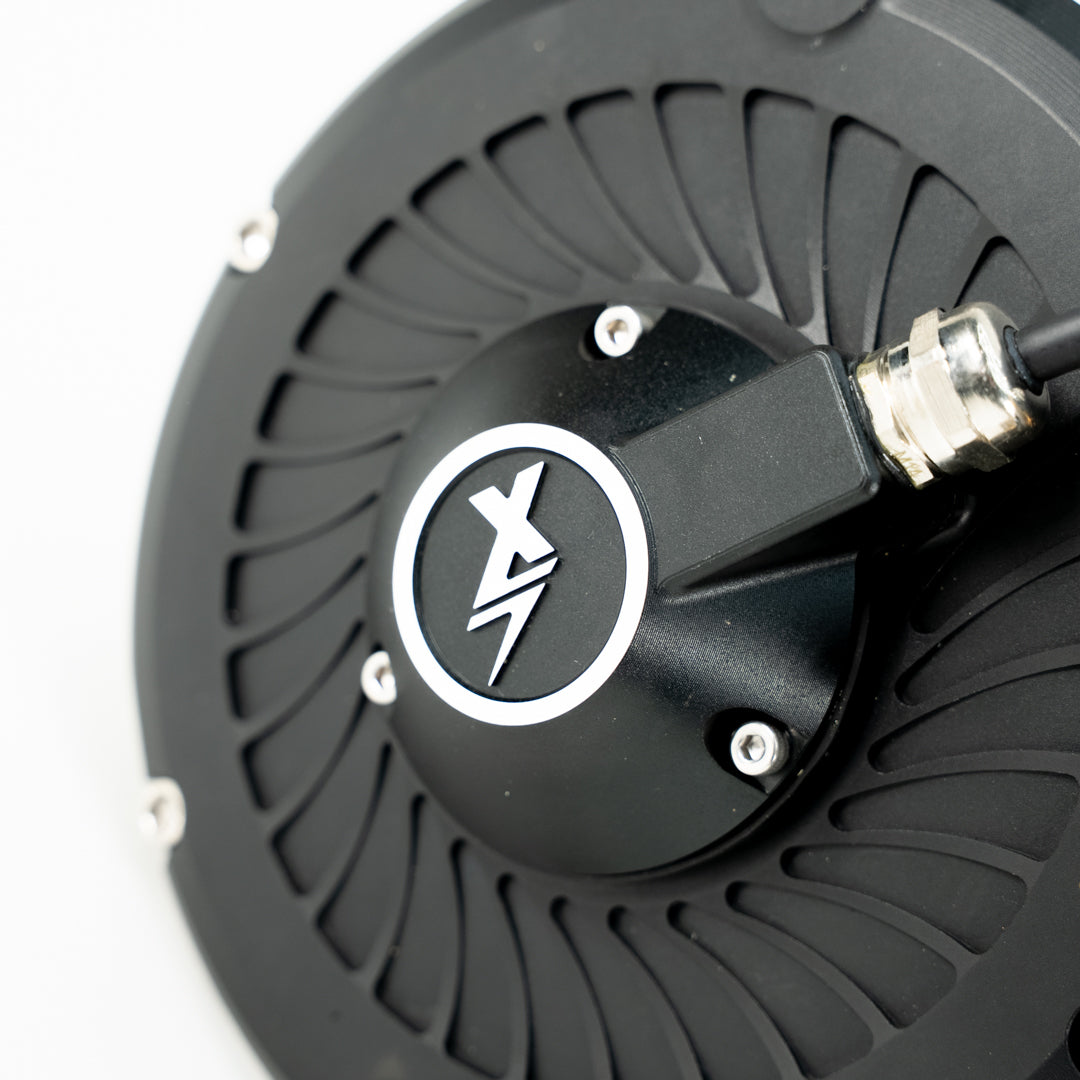

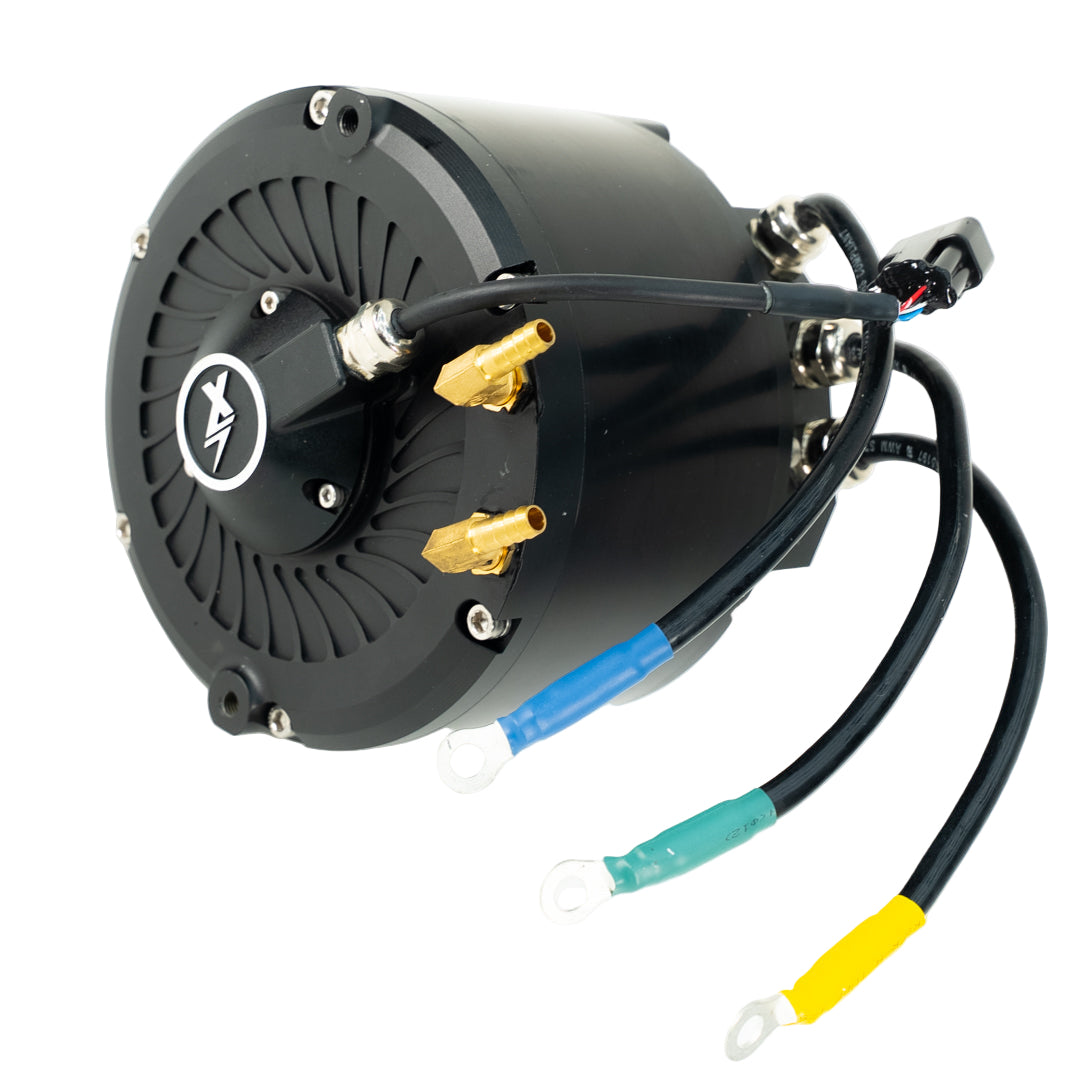

EBMX XLB-60 Liquid Cooled Motor (No Harness)

Air Cooled isn't enough for your needs? This limited edition water cooled XLB-60 will satisfy the most demanding needs and heat dissipation. It utilizes the same mounting and wiring harness of the air cooled XLB-60 for the Surron Light Bee and E-Ride Pro SS 2.0.

The EBMX XLB-60 motors have been custom-built and fine-tuned to work with the EBMX X-9000 controller. These motors will work with many other types of aftermarket controllers, however they may require you to do your own custom tuning. This EBMX motor will NOT work with a stock OEM controller.

35KW rated and designed from the ground up to handle the heat, 180C rated windings with U42H magnets. Custom IPM rotor design and industry leading 1mm rotor air gap revving out to rated 13000RPM. Encoder based motor control for increased low end torque response and smooth predictable power delivery.

Specifications

• Peak Power: 35KW
• Voltage Range: 48v - 104v
• Max Torque: 52Nm
• Max Stable Rotor RPM: 13000RPM
• Max Efficiency: 93%
• Motor Configuration: 10 poles and 12 slots
• Winding Type: Dual Y parallel connection
• Stator and Rotor Stack Thickness: 60MM
• Sensing Method: NJDC 605 Encoder
• KV Value: 95KV
• Rated power (Air cooled): 13,600W (Continuous run 28m) / 24,000W (Continuous run 2:20)
• Rated power (Water cooled): 26,000W
